Introduction: The Growing Need for Industrial Security
As industrial facilities, data centers, and power distribution networks expand globally, the security of critical electrical and IT infrastructure has never been more important. Unauthorized access to control cabinets, server racks, and distribution panels can lead to equipment damage, data breaches, operational downtime, and even safety hazards. While digital access control systems are gaining traction, traditional mechanical locks remain the backbone of physical security for millions of enclosures worldwide. Among these, the MS490 lock has emerged as a trusted solution, offering a balance of durability, ease of use, and cost-effectiveness. This article provides a comprehensive analysis of the MS490, exploring its technical specifications, application scenarios, security features, and installation best practices.
Product Overview: Understanding the MS490 Lock

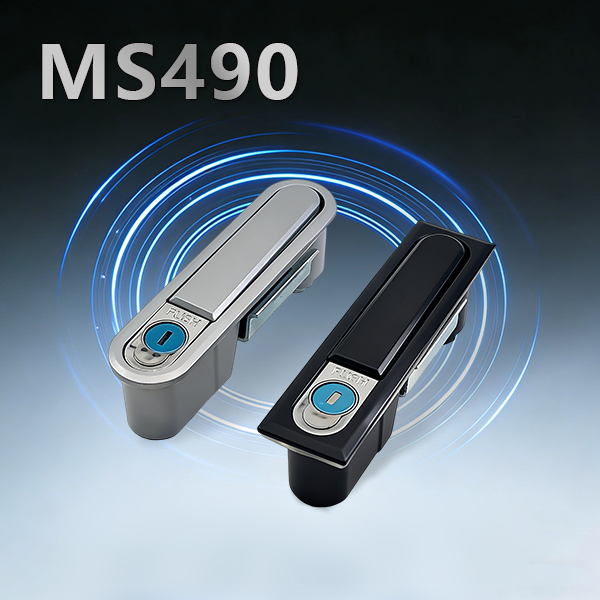

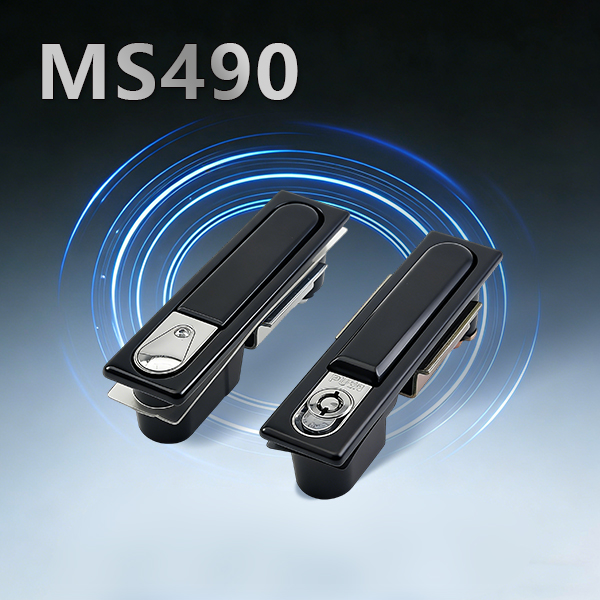

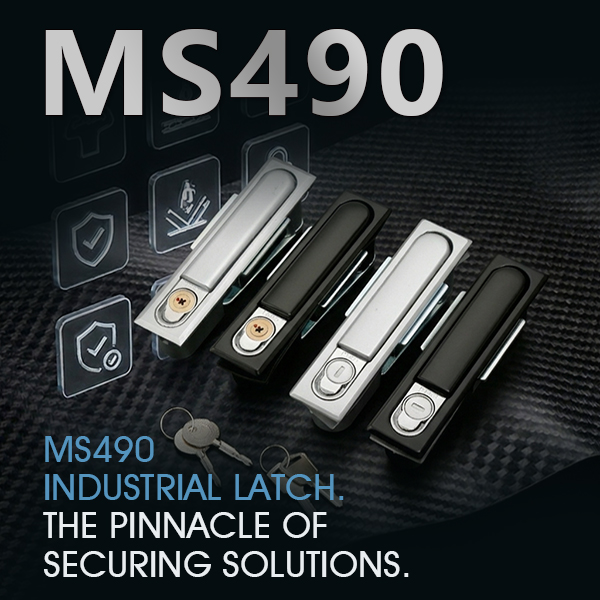

The MS490 lock is a mechanical panel lock designed specifically for industrial enclosures including electrical distribution cabinets, control boxes, IT server racks, network cabinets, machinery housings, and sheet metal cabinets. Unlike electronic locks that require wiring and power sources, the MS490 operates as a purely mechanical locking mechanism, making it ideal for environments where simplicity and reliability are paramount. The lock is available in multiple configurations, including keyed cylinder variants and keypad-equipped versions. Some models also feature a push-button swing handle design: pressing the button releases the handle, which then rotates 90 degrees to open or secure the door. This design enables rapid access while maintaining a flush, space-saving profile when locked.
Key Features and Technical Specifications

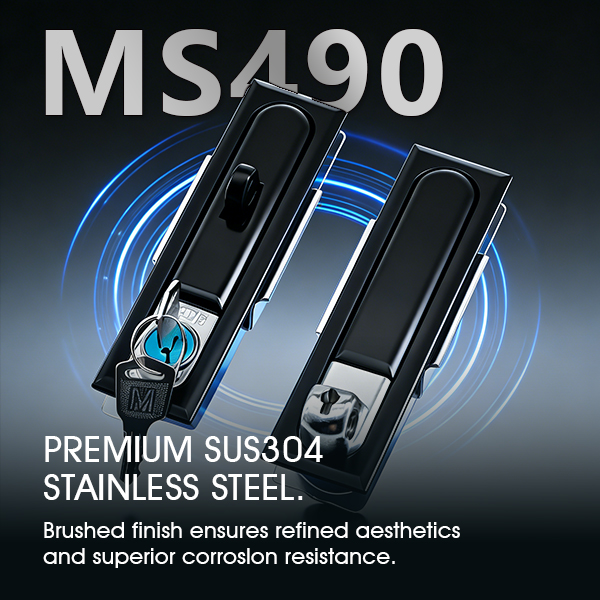

The MS490 is engineered for durability and ease of use. Most versions are constructed from high-grade zinc alloy or 304 stainless steel, materials known for their corrosion resistance, strength, and longevity. The surface finish is typically available in matte black or bright chrome, providing both aesthetic appeal and additional protection against environmental wear. The lock body dimensions are approximately 142mm in length and 34mm in width, with compatibility for panel thicknesses ranging from 1mm to 5mm.
One of the most significant technical specifications of the MS490 is its bolt. According to technical documentation, the MS490 bolt has a diameter of 18mm, an extendable length of up to 120mm, and a maximum load capacity of 50 kilograms. This substantial bolt strength makes the MS490 suitable for large distribution cabinets and transformer rooms where high mechanical loads are expected. In multi-point locking configurations, the MS490 can be paired with MS818 or MS713 latch bars to achieve two-point or three-point locking, further enhancing security.
Application Scenarios: Where to Use the MS490
The versatility of the MS490 lock makes it suitable for a wide range of applications. In the power industry, it is extensively used for low-voltage distribution cabinets, GGD cabinets, Weitu cabinets, and control boxes. These environments demand locks that can withstand frequent operation while preventing unauthorized access to live electrical components. In the IT sector, the MS490 is commonly installed on server racks, network cabinets, and telecommunications enclosures. Data center managers value the lock‘s quick-access design, which allows maintenance personnel to open cabinets rapidly while still maintaining security when closed. In industrial manufacturing settings, the MS490 is used on machinery enclosures, tool cabinets, and equipment panels. The lock’s compact form factor is especially advantageous for space-constrained applications, such as smaller distribution boxes or equipment with limited panel area.
Security Analysis: Why the MS490 Stands Out
When selecting a lock for critical infrastructure, security is the primary consideration. The MS490 incorporates multiple anti-tamper features, including anti-drill protection for the cylinder core and reinforced housing to resist prying attacks. Some variants also include anti-saw bolt construction. Compared to competing models such as the MS480, MS618, and MS818, the MS490 occupies a distinct position. The MS618 is larger and better suited for heavy-duty power boxes, while the MS480 emphasizes aesthetic design and weather resistance. The MS818, by contrast, is a premium offering with electronic control and remote management capabilities. The MS490, however, strikes an optimal balance between cost, security, and usability for general indoor industrial applications. For facility managers who do not require smart lock features but still demand robust physical protection, the MS490 represents a cost-effective solution without compromising security.
Installation and Maintenance Best Practices
One of the MS490‘s key selling points is its ease of installation. Certain versions are claimed to support a two-second quick-install mechanism. This rapid installation capability is particularly beneficial for large-scale projects involving hundreds of cabinets. During installation, it is important to ensure that the lock body is compatible with the door panel thickness—typically 1mm to 5mm—and that the latch aligns correctly with the strike plate. For multi-point configurations, the MS818 or MS713 latch bars must be properly attached.
Routine maintenance is straightforward. Regular cleaning is recommended to prevent dust and debris accumulation, but users should avoid using strong solvents such as thinner, sulfuric acid, or acidic solutions on the lock surface. Polishing machines should also be avoided. The lock should be stored in a dry location away from moisture to prevent oxidation. Additionally, users should ensure that the lock is operated within its specified load capacity—50kg maximum for the bolt—to avoid damage.
Conclusion
The MS490 lock offers a compelling combination of durability, security, and ease of installation for industrial enclosures. Whether securing power distribution cabinets, IT server racks, or factory equipment, the MS490 provides reliable mechanical protection at a cost-effective price point. Its robust construction, substantial bolt strength, and straightforward maintenance make it a preferred choice for facility managers and maintenance professionals. For those seeking a dependable panel lock that prioritizes mechanical security over electronic complexity, the MS490 is an excellent investment in long-term infrastructure protection.
