For OEMs, panel builders, and procurement specialists engaged in large-scale infrastructure projects, securing the doors of electrical enclosures demands more than a single-point locking mechanism. Heavy doors, environmental sealing requirements, and the need for operational reliability over decades of service necessitate a solution that distributes force intelligently and provides consistent, uniform compression. The MS731 Linkage Lock System—also widely known as a rod lock or multi-point locking system—has become the recognized industry standard for these demanding applications. This article provides a comprehensive technical overview of the MS731, exploring its engineering, material specifications, application versatility, and the strategic value it offers to manufacturers and distributors worldwide.
Outline
- Product Overview: The Core of a Multi-Point Locking System – Defines the MS731 and its role as the central driver for comprehensive enclosure security.
- Technical Specifications and Material Integrity – Details the zinc alloy construction, surface finishes, and engineering parameters that ensure long-term reliability.
- Primary Applications: Where the MS731 Excels – Identifies the key industries and scenarios where this linkage lock is specified.
- The Lida Advantage: Customization and Supply Chain Partnership – Highlights customization capabilities, MOQ flexibility, and reliable support for bulk orders and OEM projects.
1. Product Overview: The Core of a Multi-Point Locking System

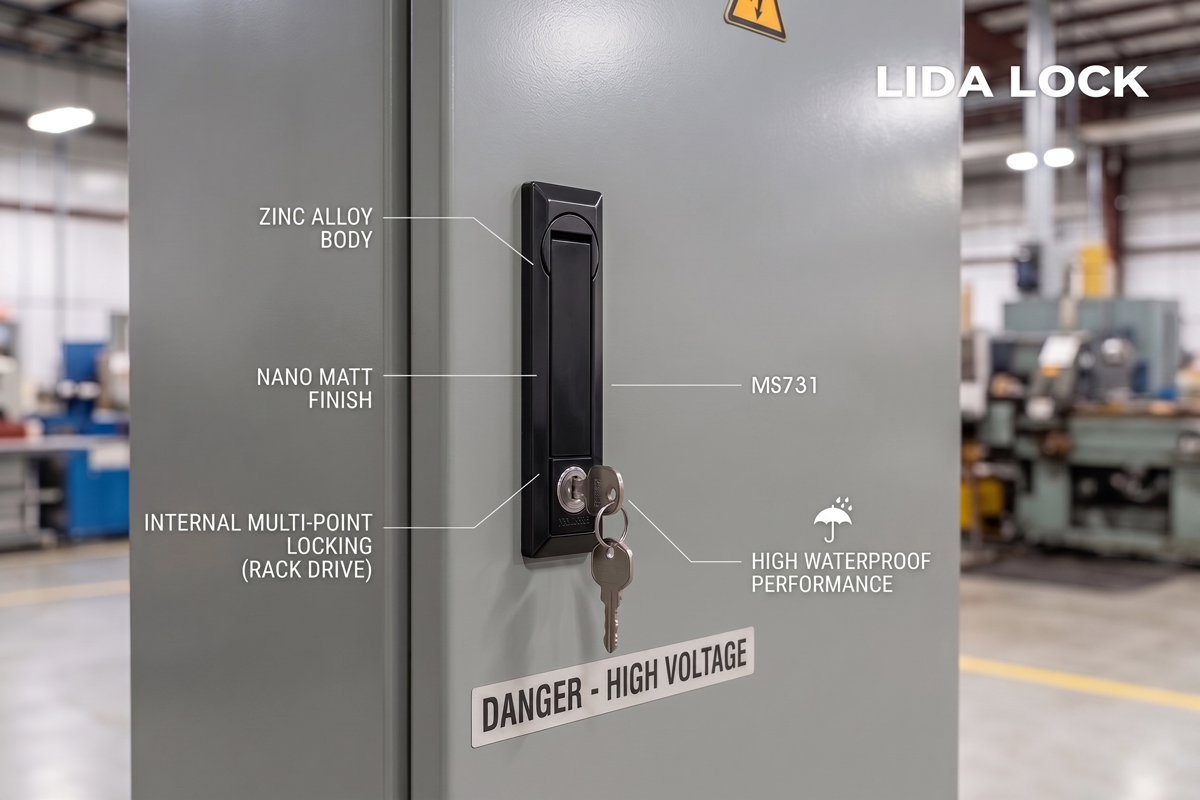

The MS731 is not a stand-alone cam lock; it is a sophisticated linkage lock system engineered as the central operating mechanism for multi-point locking configurations. Unlike single-point locks that secure a door at only one location, the MS731 is designed to interface directly with vertical connecting rods. When the operator rotates the handle 90 degrees, the lock’s internal gear mechanism drives these rods to engage multiple latch points—typically at the top and bottom of the door—simultaneously against the cabinet frame.
This multi-point engagement creates a uniformly distributed clamping force across the entire door perimeter. This is critical for maintaining the enclosure’s environmental protection rating, preventing door distortion under pressure, and ensuring a consistent gasket seal—an essential requirement for outdoor or dust-sensitive installations. The MS731 is designed to accommodate both left and right door opening configurations simply by repositioning the connecting rods, providing maximum flexibility for panel builders managing diverse cabinet layouts.
2. Technical Specifications and Material Integrity
The reliability of the MS731 is rooted in its robust material selection and precision engineering. Lida Lock’s version of this industry-standard linkage lock adheres to rigorous quality specifications.
- Core Materials for Durability: The lock’s base, handle, button, and transmission housing are constructed from high-strength zinc alloy (Grade #4) , a material recognized for its excellent castability, dimensional stability, and superior corrosion resistance compared to standard steel. The connecting rods, steel cams, and latch components are fabricated from carbon steel with zinc plating, ensuring long-term mechanical integrity under repeated use.
- Surface Finishes for Aesthetics and Protection: The MS731 is available in multiple surface finish options to suit various aesthetic and environmental requirements. Standard finishes include matte chrome for a polished, professional appearance, matte black for a subdued industrial look, and bright chrome for enhanced corrosion resistance. The internal steel components feature white zinc plating as standard, providing a reliable defense against rust.
- Engineering Parameters: The MS731 is engineered for heavy-duty cycles. Technical specifications include a handle bearing tension (pull force) resistance of up to 350 Newtons and a handle bearing torque tolerance of up to 25 Newton-meters when fully locked, ensuring dependable performance under high-stress conditions. The lock operates on a proven 90-degree rotation mechanism, allowing for swift and intuitive opening or secure locking. It ships standard with K060 keys and accommodates panel thicknesses typically ranging from 1.2 to 3.0 mm, with adjustable rod configurations available. Furthermore, the system can be configured for two-point or three-point locking based on specific project requirements. For applications needing improved ingress protection, variants of the MS731 incorporate silicone sealing gaskets to help achieve higher IP ratings.
- Multi-Point Locking Capability: The MS731 is categorized as a “heaven and earth linkage lock” in industry terminology, meaning it can simultaneously engage the top (heaven) and bottom (earth) latch points, providing superior door retention and environmental sealing.
3. Primary Applications: Where the MS731 Excels
The MS731′s robust construction, multi-point locking capability, and versatile design make it the preferred choice across a wide spectrum of industrial and commercial applications:
- Power Distribution and Control: Extensively used on power distribution cabinets, switchgear enclosures, medium-voltage cabinets, high-voltage panels, and motor control centers, where reliable multi-point security is essential for access control and equipment protection.
- Telecommunications and Data Infrastructure: Commonly specified for outdoor telecom cabinets, server room enclosures, and fiber optic distribution panels where environmental sealing and controlled access are critical.
- Industrial Machinery and Automation: Integrated into PLC control cabinets, machine tool enclosures, and operator panels where technicians require robust, frequent access in manufacturing environments.
- Renewable Energy Systems: Deployed in solar inverter cabinets, battery energy storage system (BESS) enclosures, and wind turbine control panels located in outdoor or harsh environments.
- Commercial and Infrastructure Equipment: Found on storage cabinets, heavy-duty toolboxes, and public utility enclosures where durability and secure latching are valued.
4. The Lida Advantage: Customization and Supply Chain Partnership
As a dedicated manufacturer and ODM partner, Lida Lock offers the MS731 with capabilities that extend far beyond standard catalog specifications.
- Comprehensive Customization Options: We understand that project requirements vary. Lida provides extensive customization services, including:
- Custom Keying: Implementation of keyed-alike (KA) , keyed-different (KD) , or master-keyed systems to match facility management protocols and security hierarchies.
- Rod Configuration: Adaptation of connecting rod lengths, multi-point configurations (2-point or 3-point locking), and latch adjustments to suit specific cabinet dimensions and sealing needs.
- Finish Options: Available in multiple plated and powder-coated finishes, including matte chrome, matte black, bright chrome, and customized RAL color matching to meet aesthetic or environmental requirements.
- Lock Cylinder Variants: Multiple keyway options to provide flexibility for different security requirements and compatibility with existing key systems.
- Flexible Supply Chain Support: Whether you require small quantities for prototyping or large-scale bulk orders for global projects, Lida offers competitive MOQ terms and reliable procurement support. We partner with wholesale distributors, vendors, and international suppliers to ensure consistent quality and timely delivery for every batch order. Our factory-direct model ensures transparency and value for distributors and OEMs alike.
Conclusion
The MS731 linkage lock represents the ideal balance of robust multi-point security, proven mechanical reliability, and design versatility for electrical enclosures and industrial cabinets. Its 90-degree rotation mechanism, durable zinc alloy construction, and multi-point rod drive capability deliver a locking solution that meets the demanding requirements of power distribution, telecommunications, renewable energy, and industrial automation applications. The system’s engineered underperformance—from its 350N bearing tension capacity to its corrosion-resistant finishes—ensures that it stands up to decades of service in the world’s most challenging environments.
At Lida Lock, we manufacture the MS731 with the precision and quality control that global industries demand. We serve as more than just a vendor; we are a strategic partner capable of delivering customized solutions and supporting procurement at any scale—from pilot projects to large infrastructure deployments.
