For OEMs, panel builders, and procurement specialists tasked with securing large electrical enclosures, the challenge extends beyond simple access control. Heavy doors, demanding environmental conditions, and the need for uniform sealing require a locking solution that distributes force intelligently and performs reliably over decades of service. The MS840 Linkage Lock—also known as a rod lock or multi-point locking system—has emerged as the industry standard for these applications. Engineered from high-strength materials and designed for seamless integration, the MS840 transforms a single operator action into comprehensive, multi-point security. This article provides a detailed technical overview of the MS840, exploring its design, applications, and the strategic advantages it offers to manufacturers and distributors worldwide.
Outline
- Product Overview:The MS840 Multi-Point Locking System – Defines the MS840 and its core function in electrical enclosure security.
- Technical Specifications and Material Integrity – Details the construction materials, finishes, and engineering parameters that ensure long-term reliability.
- Primary Applications: Where the MS840 Excels – Identifies the key industries and scenarios where this locking system is specified.
- The Lida Advantage: Customization and Supply Chain Partnership – Highlights customization capabilities, MOQ flexibility, and reliable support for bulk orders and OEM projects.
1. Product Overview: The MS840 Multi-Point Locking System

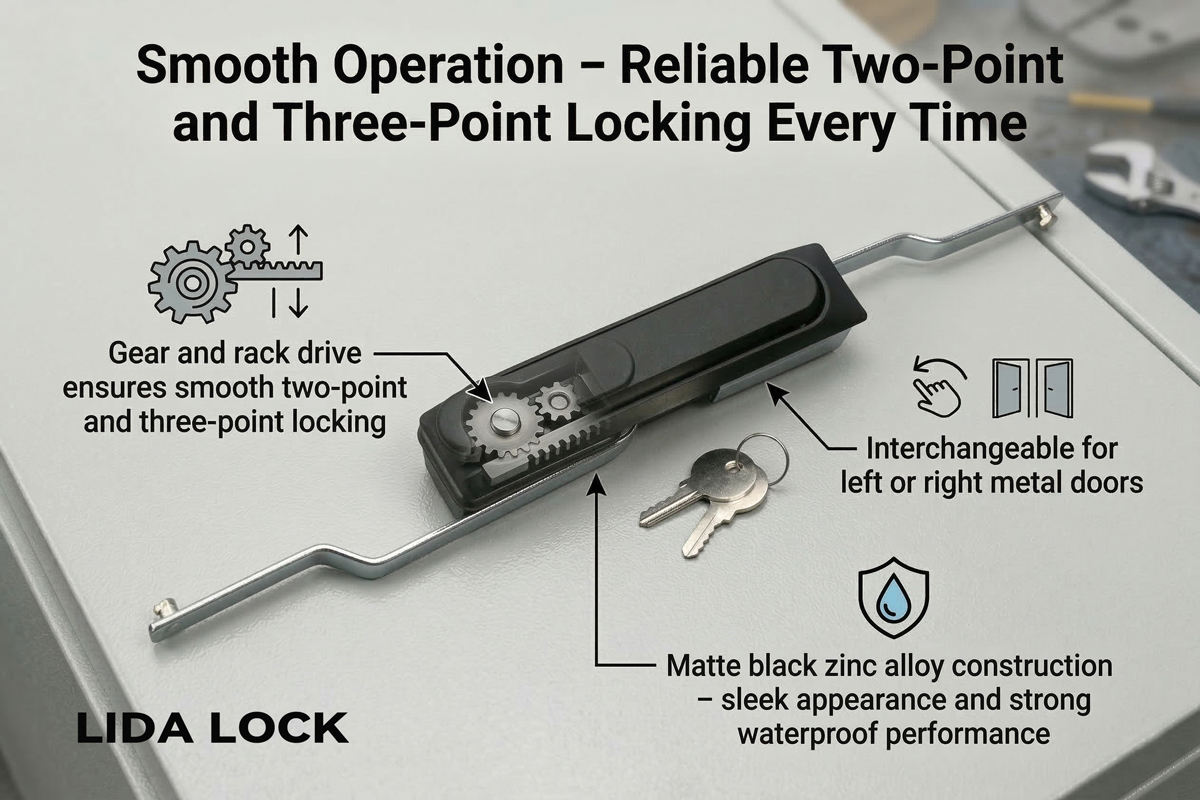

The MS840 is a sophisticated linkage lock system designed to secure large cabinet doors through multi-point engagement. Unlike single-point locks that concentrate force at one location, the MS840 uses a central operating mechanism—typically a robust handle lock or rotary actuator—connected to vertical or horizontal rods (linkages). When the operator turns the handle, the rods drive multiple latch points (typically at the top and bottom of the door) simultaneously into the cabinet frame . This creates a uniform, balanced clamping force around the entire door perimeter, ensuring a consistent seal and preventing door distortion under pressure. The system’s name, “MS840,” refers to a standardized model widely recognized across the industrial hardware sector, making it a reliable choice for specifiers seeking proven, off-the-shelf solutions .
2. Technical Specifications and Material Integrity
The performance of the MS840 is defined by its robust construction and precision engineering. Lida’s version of this industry-standard lock adheres to the highest material and manufacturing specifications.
- Core Materials for Durability: The primary components are constructed from high-strength zinc alloy die-castings, chosen for their excellent strength-to-weight ratio and corrosion resistance . The internal drive components and linkage rods are typically fabricated from carbon steel with protective coatings . Some variants incorporate stainless steel for applications demanding maximum environmental resilience.
- Surface Finishes for Environmental Protection: To withstand harsh conditions, the MS840 features advanced surface treatments. The housing and handle often receive a durable powder coating in finishes such as black textured or other RAL-matched colors. Steel components are protected with zinc plating (e.g., clear or yellow zinc) to meet stringent salt spray test requirements .
- Engineering Parameters: The MS840 is engineered for heavy-duty cycles, with documented handle torque and pull-force ratings (e.g., handle pull force ≤300N, torque ≤33N·m) . Its design facilitates a door opening angle >110° and contributes to achieving high Ingress Protection ratings, with systems capable of meeting IP54 to IP65 requirements for dust and water resistance .
3. Primary Applications: Where the MS840 Excels
The MS840′s ability to provide uniform sealing and robust security makes it the preferred choice across a wide spectrum of industries:
- Power Generation and Distribution: Extensively used in outdoor electrical cabinets, switchgear enclosures, and transformer boxes where environmental sealing is critical .
- Renewable Energy Infrastructure: A key component in battery energy storage systems (BESS) and solar inverter cabinets, where reliability and longevity are non-negotiable .
- Telecommunications and Data Centers: Specified for large server racks, outdoor telecom cabinets, and network equipment enclosures requiring controlled access and protection from the elements.
- Industrial Machinery and Automation: Integrated into machine tool enclosures, PLC cabinets, and robotic work cells to ensure operator safety and equipment integrity.
- Transportation and Infrastructure: Found in rail signaling equipment, traffic control cabinets, and other roadside infrastructure demanding tamper resistance and weatherproofing.
4. The Lida Advantage: Customization and Supply Chain Partnership
As a dedicated manufacturer and ODM partner, Lida Lock offers the MS840 with capabilities that extend far beyond standard catalog specifications.
- Comprehensive Customization Options: We understand that project requirements vary. Lida provides extensive customization services, including:
- Custom Keying: Implementation of keyed-alike (KA) , keyed-different (KD) , or complex master-keyed systems to match facility management protocols .
- Finish and Color Matching: Ability to match specific RAL colors or corporate branding requirements through our flexible coating processes.
- Design Modifications: Adaptation of linkage lengths, cam configurations, and mounting details to integrate seamlessly with unique cabinet designs. Our engineering team collaborates with OEM clients to develop tailored locking solutions that address specific application challenges.
- Flexible Supply Chain Support: Whether you require small quantities for prototyping or large-scale bulk orders for global projects, Lida offers competitive MOQ terms and reliable procurement support. We partner with wholesale distributors, vendors, and international suppliers to ensure consistent quality and timely delivery for every batch order. Our factory-direct model ensures transparency and value for distributors and OEMs alike .
Conclusion
The MS840 linkage lock represents the gold standard for securing large electrical enclosures where uniform force distribution, environmental sealing, and long-term reliability are paramount. Its proven design, combined with robust materials, delivers a multi-point locking solution that stands the test of time.
At Lida Lock, we manufacture the MS840 with the precision and quality control that global industries demand. We serve as more than just a vendor; we are a strategic partner capable of delivering customized solutions and supporting procurement at any scale—from pilot projects to massive infrastructure deployments.
Ready to specify the MS840 for your next project?
Contact our engineering and sales team today to request detailed specifications, discuss customization options, or initiate a quote for your upcoming batch order.
